Shuttle tables WT 1-LEVEL and WT 2-LEVEL



The shuttle and sliding table concept enables the continuous processing of the parts by two pick-up plates in shuttle mode. These are located next to each other on one level in the case of WT 1-LEVEL or above each other on two levels in the case of WT 2-LEVEL. The insertion area for the components is clearly and safely separated from the traversing area of the CNC robots. The shuttle tables have a stable aluminum base frame with leveling feet. The aluminum pick-up plates are prepared with a hole pattern for attaching the workpieces or workpiece fixtures.



Technical Data

  • Pneumatic drive of the shuttle table plates with end position monitoring
  • Compressed air consumption: 120 l/min at approx. 6 bar





Animation of DM 50x with shuttle table on one level



Animation of DM 50x with shuttle table on two levels



Shuttle table WT 1-LEVEL

Two pick-up plates in shuttle mode
side by side on one level

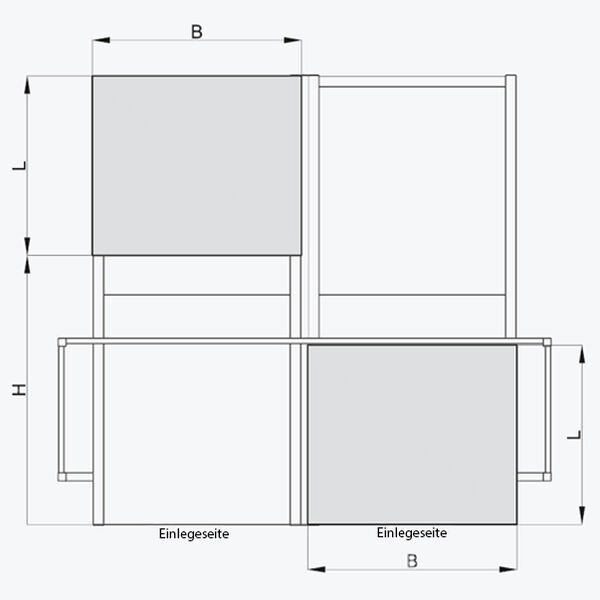

Work surfaces side by side, dimensions of the respective
work surface (see table of variants for the WT 1-LEVEL)

Variants WT 1-Level

Work surfaces side by side, dimensions of the respective work surface (length x breadth in mm):

DIMENSIONS WORK SURFACE SLIDING TABLE

DIMENSIONS LINEAR ROBOT
Breadth (B) Length (L) Stroke (H) Working height (AH) X-Axis Y-Axis
450 1,000 1,500 950 1,000 1,000
950 1,000 1,500 950 2,000 1,000
1,200 1,000 1,500 950 2,500 1,000

Special sizes can be produced on request.



Shuttle table WT 2-LEVEL

Two pick-up plates in shuttle mode,
one above the other on two planes





Work surfaces side by side, dimensions of the respective
work surface (see table of variants for the WT 2-LEVEL)

VARIANTs WT 2-Level

Work surfaces side by side, dimensions of the respective work surface (length x width in mm):

DIMENSIONS SLIDING TABLE / WORK SURFACE

DIMENSIONS LINEAR ROBOT
Tabletop – top Tabletop – bottom Stroke (H) X-Axis Y-Axis
BA1 BT1 L BA2 BT2 L
1,600 2,200 1,000 1,600 1,700 1,000 1,500 2,000 1,000
2,100 2,700 1,000 2,100 2,200 1,000 1,500 2,500 1,000
2,400 3,000 1,000 2,400 2,500 1,000 1,500 3,000 1,000

Special sizes can be produced on request.
