All automatic

The art of process integration



The way in which the mixing head is moved over the part is fundamental to the construction of the mixing and dispensing system and depends on the way you wish to integrate it into your production process. Sonderhoff offers you many possibilities and even more industry-specific experience. Whether it's semi-automated island solutions or complex inline designs developed together with your automators – we’ve probably done it before!

Maximum precision

Moving the mixing head over the component with a 2- or 3-axis linear robot (MKVE, LR-HD, LR-HEplus) mounted on a steel profile framework


Maximum compactness

Moving of the mixing head with a 3-axis linear robot mounted in a dispensing cell.


Maximum mobility

Moving the mixing head with a 6-axis robot – in this case, upside-down application is possible with the right choice of material.


Maximum productivity

Naturally it is also possible, with 6-axis robots, to pick up the part and move it under a fixed mixing head, in order to address the most complex geometries. For Sonderhoff-developed fully automatic MOLD'N SEAL inline production, dispensing systems and 6-axis robots are combined with an injection moulding system.


Maximum simplicity

It remains always up to you whether you want to move the mixing head by hand – providing you have enough strength. But then, you could still always get a robot to help...

LR-HD

“High Dynamic” linear robot

Highly dynamic 3-axis linear robot with toothed-rack drive, of robust construction and high rates of acceleration, for high precision application of reactive polymer materials. A keyboard-operated, dialog/menu-based system is used to run, program and control the machine. The operating data is displayed on a screen fitted to the central dosing and mixing control unit. The system is designed for applications that involve high speed processing combined with rapid changes in direction.

Download product brochure LR-HD



DESCRIPTION

  • Chassis section based on a robust welded steel-frame construction, supplied coated and fitted with adjustable leveling feet and floor-anchoring points
  • Guide system with maintenance-free, low-wear linear bearings, designed for high-load operation
  • Guide elements covered with protective bellows
  • High dynamic AC servo and toothed-rack drives
  • Torsion-resistant precision transmissions and clutches
  • Mechanical end-limit and referencing switches
  • Use of supply-line guide chains, for the securing of compressed-air, electrical and hydraulic power lines
  • Traversing control integrated in central mixing and dosing unit “IPC” control
  • Multi-function Teach-In-Box
Technical specifications
Max. sliding speed 58 m/min
Max. acceleration 10 m/s2
Repeating accuracy +/- 0,08 mm
Load capacity 20 kg
Electrical system according to EN 60 204-1 standard
Coating – Chassis section 2-componet industrial grade coating, RAL 7035 (light grey)
Power supply 3 x 400 V, 50 Hz or 60 Hz or according to country specification
Rated capacity approx. 2 kVA
Average power consumption approx 1 kVA

VariantS

  • LR-HD: 800 x 600 x 300 mm (x/y/z)
  • LR-HD: 1.000 x 1.000 x 300 mm (x/y/z)
  • LR-HD: 2.000 x 1.000 x 300 mm (x/y/z)
  • LR-HD: 2.500 x 1.000 x 300 mm (x/y/z)
  • LR-HD: 3.000 x 1.000 x 300 mm (x/y/z)
  • Optional: Y-axis 1.250 or 1.500 mm
  • Optional: Z-axis 150 or 500 mm
  • Technical modifications reserved
  • Further technical information are available upon request
3-axis linear robot with toothed-rack drive

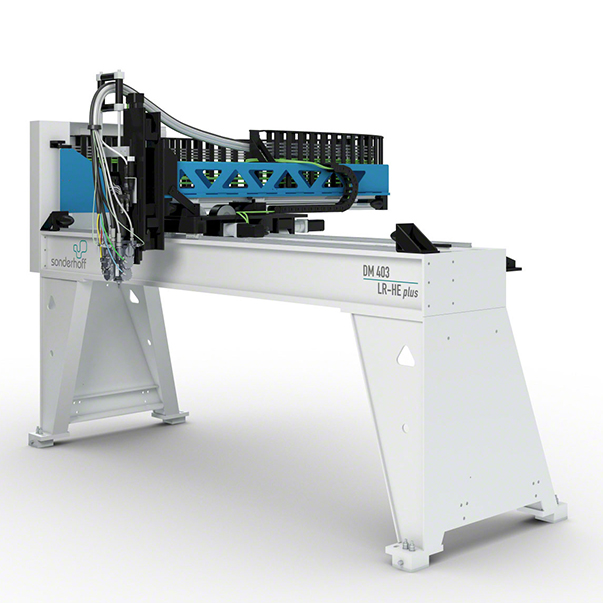

LR-HE plus

“High Efficiency” linear robot

Highly efficicent 3-axis linear robot with Omega belt drive for the maximum-precision application of reactive polymer materials. A MOBILE PANEL operated, dialog/menu-based system is used to run, program and control the machine. The operating data is displayed on a touch screen fitted to the central dosing and mixing control unit.

Download product brochure LR-HE plus



Description

  • Chassis section based on a robust welded steel-frame construction, with screwable bade frame, supplied coated and fitted with adjustable leveling feet and floor-anchoring points
  • Guide system with maintenance-free, low-wear linear bearings
  • AC servo drives on all axes, with Omega belt drive on the X- and Y-axis and toothed rack drive on the Z-axis
  • Precision transmissions on the X-, Y- and Z-axis
  • Mechanical reference switches
  • Use of supply-line guide chains, for the securing of compressed-air, electrical and hydraulic power lines
  • Control unit and all electrical subassemblies are installed in the switchgear cabinet of the dosing and mixing unit
  • Traversing control integrated in central mixing and dosing unit “IPC” control
  • Multi-function Teach-In-Box-MOBILE PANEL

Technical Specifications
Max. sliding speed 58 m/min
Max. acceleration 5 m/s2
Repeating accuracy +/- 0,1 mm
Load capacity 20 kg
Electrical system according to EN 60 204-1 standard
Coating – Chassis section 2-component industrial grade coating, RAL 7035 (light grey)
Mains power supply 3 x 400 V, 50 Hz or 60 Hz, or according to country specification
Rated capacity approx. 2 kVA
Average consumption approx. 1 kVA

VariantS

  • 1.000 x 1.000 x 300 mm (x/y/z)
  • 1.500 x 1.000 x 300 mm (x/y/z)
  • 2.000 x 1.000 x 300 mm (x/y/z)
  • 2.500 x 1.000 x 300 mm (x/y/z)
  • 3.000 x 1.000 x 300 mm (x/y/z)
  • Optional Y-axis 1.250 mm
  • Optional Z-axis 500 mm
  • Technical modifications reserved
  • Further technical information are available upon request

3-axis linear robot with toothed-rack drive

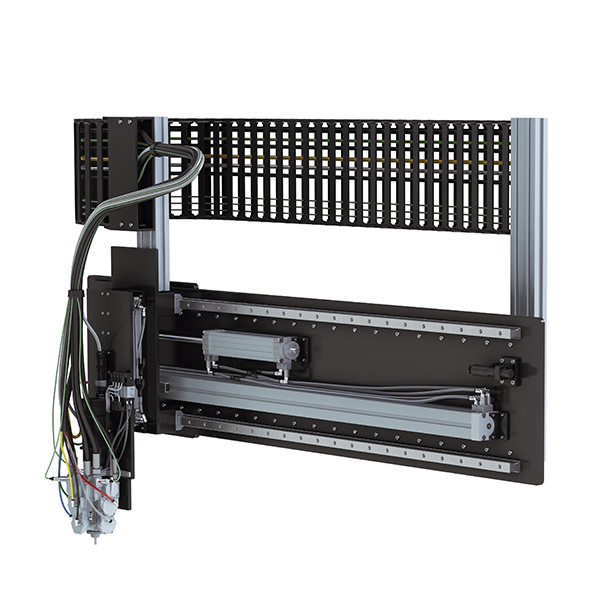

MKVE

Mixing head traversing unit

Two-way traversing unit with selectable electrical or compressed-air drive system, whereas the two drive systems can be combined as required. The pneumatic X-axis covers three positions, the Z-axis two and the operating position equals the end-position in each case. The electrical axes are actuated by regulated servo drives, allowing the operating positions to be programmed as desired. A keyboard-operated, dialog/menu-based system is used to run, program and control the machine – while the operating data is displayed on a screen fitted to the central dosing and mixing control unit. The system is designed for use in situations where the mixing head needs to traverse along a straight line.

Download product brochure MKVE



Description

  • Chassis section based on a robust welded steel-frame construction, supplied coated and fitted with adjustable leveling feet and floor-anchoring points
  • Guide blocks with maintenance-free, low-wear linear bearings
  • Supply-line guide chains are used on all sizes of the mixing-head traversing unit to secure the compressed-air, electrical and hydraulic power lines
  • Control via the “IPC” unit in the dosing and mixing unit
  • Control unit and all electrical subassemblies are installed in the switchgear cabinet of the dosing and mixing unit
Technical specifications
Load capacity: 20 kg
Electrical system: according to EN 40 439-1 and EN 60 204-1 standards
Coating – Chassis section 2-component industrial grade coating, RAL 7035 (light grey)
Mains power supply: 3 x 400 V, 50 Hz or 60 Hz, TT or TN network
Rated capacity: approx. 2 kVA
Average consumption: approx. 1 kVA
Compressed-air supply rating: 6 – 7 bar at approx. 400 l/min

Pneumatic system

  • Pneumatic drive system with double reciprocating piston and three adjustable fixed-stop dampers is used to establish the purging, filling and dose positions
  • Z-axis module, with stroke of 150 mm, lower pos. with damper
  • Max. traversing speed: approx. 24 m/min
  • Max. acceleration (pneumatic axis): approx. 1 m/s²
  • Repeating accuracy (pneumatic axis): +/- 0.15 mm

Electrical system

  • AC servo drives on each axis, with spindle drive with shaft joint on the X-axis and toothed-rack drive on the Z-axis
  • Precision transmissions on the Z-axis
  • Mechanical end-limit and referencing switches on the axes
  • Max. traversing speed: approx. 37 m/min
  • Max. acceleration (electrical axis): approx. 2 m/s²
  • Repeating accuracy (electrical axis): +/-0.1 mm


VariantS

  • Mixing head traversing unit     600 x 150 mm (x/z)
  • Mixing head traversing unit     800 x 150 mm (x/z)
  • Mixing head traversing unit  1.000 x 150 mm (x/z)


OPTIONS

  • Levelling plate
  • Multi-functional Teach-In-Box
  • Mixing head swivelling device, 30° on the X-axis
  • Mixing head swivelling device, 10° on the Y-axis
  • Manual Z-axis, max. stroke 150 mm
  • Z-axis 80 mm
  • Special sizes are available on request
